Hydraulic Manual Stacker BT-MPS1030
Hydraulic Manual Stacker BT-MPS1030
Part Number:BT-MPS1030
Couldn't load pickup availability
Hydraulic Manual Stacker
BT-MPS1030
Brand: BSSTech
Loading Capacity: 1Ton (1000kg)
Max Lifting Height: 3 Meter
Operation:
Up/Down: Manual
Push/Pull: Manual
Warranty: 1 Year from supply against manufacturing defects
SPECIFICATION
| Hydraulic Manual Stacker BT-MPS1030 | |
| Part Number | BT-MPS1030 |
| Brand | BSSTech |
| Loading capacity(ton) | 1 |
| Loading center(mm) | 400 |
| Wheel type | nylon |
| Bearing wheel size(mm) | 80*60 |
| Steering wheel size(mm) | 180*50 |
| Min.fork lowered height(mm) | 90 |
| Max.fork lifting height(mm) | 3000 |
| Overall fork width(mm) | 220-940 |
| Inside width between forks(mm) | 20-740 |
| Fork size(mm) | 900/100/30 |
| Overall length(mm) | 1375 |
A manual pallet stacker is a type of equipment used for lifting and moving pallets of goods. It is manually operated and does not require any power source. It comprises a platform for the goods to be lifted and moved, and a scissor-like mechanism that raises and lowers the platform. The pallet stacker has a set of wheels for easy movement and manoeuvrability
PRODUCT DETAILS
Stabilizing and strengthening large oil cylinder.
It can work at minus 15 degrees. It is resistant to low temperature. The factory has advanced technology.Good sealing, no oil leakage。
Our products are equipped with thickened forks and stiffeners welded, which are stable and durable. Long service life, strong and durable.

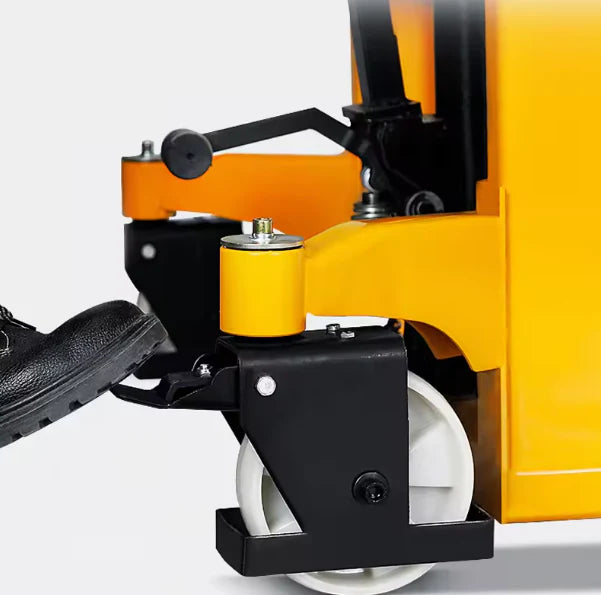

Bearing guide wheel
Brand new bearing, upgraded guide wheel, more stable load, professionally designed gantry track, firmly stuck to the guide wheel, and the gantry is more firm and not easy to deform.
